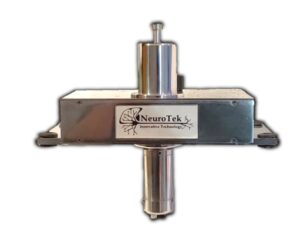

16/32 Channel Motorized Commutator for Intan chips with stimulation.
NeuroTek is excited to produce a high-quality economical commercial motorized commutator for Intan and OpenEphys products. This commutator series is compact with a robust aluminum design (no 3D printed parts). This product is easily adapted to recording chambers and is used in the therapeutics industry. It utilizes a magnetic hall-effect sensor to directly detect cable twisting. Once twisting is detected, a microcontroller and motor are used to untwist the cables. Sensitivity is superior to indirect clip cable methods and can even be customized for birds or juvenile mice. This particular series is wired to accommodate RHS16 and 32 channel INTAN Stim/Recording headstages.
 | ||||
| GENERAL SPECIFICATIONS | |
|---|---|
| Part Number | CMTR-16-32-M-S-INTAN-NT |
| Sensitivity | Low torque on the input connector. This means animals can be tethered with light weight cable, minimizing discomfort. |
| Channels | 16 or 32 channel models for 1 or 2 Intan Headstages |
| Connector for animal leads | Omnetics |
| Connector for output to amplifiers or stimulators | 36 Channel 3M to Omnetics adaptor |
| Dimensions | 9" X 5" X ~7.5" height varies depending on channel counts |
| Stimulation | Channels for stim to fit RHS-16 or RHS-32 |
| Fluid delivery | yes, but requires adaptor |
| Motor | stepper |
| Mounting | Mounted using holes at the base of the commutator. |
| Required headstage gain | 1X |
